C1HH100FA-C | C1HH203FA-C

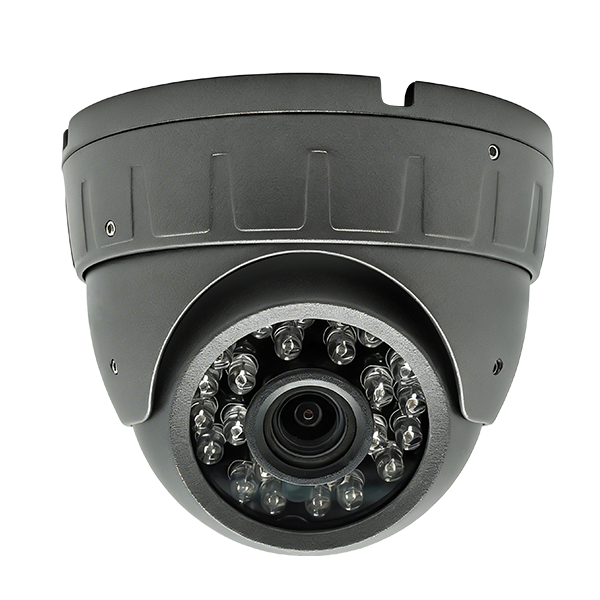

720P/2MP Indoor HD Analog Car Camera Front View / Rear View

Front/Rear View · Low Light Sensitivity · DWDR · 3D/2D DNR · ICR Day/Night · UTC Control · Multi-language OSD · AHD/TVI/CVI/CVBS · Metal Housing · 4P Aviation Connector · Wide Temperature · Plug & Play · Vehicle Grade
    Products
    · 720P/2MP Indoor Car Camera Front View / Rear View
    · 3.6mm Fixed Lens (2.8mm optional).
    · Provides crystal-clear 720P HD analog imaging for stable vehicle surveillance.
    · Superior night vision performance with 24 IR LEDs, offering 15–20m infrared viewing distance.
    · Professional image processing with DWDR, 3D/2D DNR and ICR day/night switching to deliver sharp images under strong backlight and complex conditions.
    · Supports multi-format video output (AHD/TVI/CVI/CVBS) adjustable via UTC, highly compatible with most vehicle DVRs.
    · Intuitive OSD and UTC control with multi-language support, making operation simple and convenient.
    · Durable vehicle-specific construction with metal housing and 4P aviation connector for enhanced stability.
    · Adapts to a wide temperature range from -20°C to +50°C, maintaining consistent performance in all environments.
    · Hassle-free plug-and-play setup for fast installation with no complicated configuration required.
    Model Number C1HH100F-C
    Camera
    Image Sensor 1/3.02’’Color CMOS Image Sensor
    Max.Resolution 720P
    Min. Illumination 0.01Lux@(F1.6,AGC ON),0LUX with IR
    Electronic Shutter Auto
    Video Standard PAL/NTSC
    Synchronization Inter-Sync
    Lens
    Focal Length 3.6mm @F1.6
    Lens Resolution 3MP
    Illuminator
    Light Distance 15-20m
    IR LEDS 24pcs Infrared LEDs
    Day/Night Mode Auto/B&W
    Image Settings Contrast/sharpness/saturation/DNR
    Frame Rate 720P@25fps/30fps
    WDR Digital WDR
    UTC Support
    OSD Support Support
    Noise Reduction 3D DNR/2D DNR
    White Balance Auto/Manual
    Exposure Brightness/exposure mode/gain control
    Video Output AHD/TVI/CVI/CVBS Switch by UTC
    Language ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
    Audio
    Audio Input No
    Audio Output No
    Interface
    Video Output 1 x 4P Vehicle Aviation Connector
    General
    Type Metal Housing
    Power Supply 12V DC±10%
    Lightning Protection Support
    Power Consumption Max 3W
    Working Humidity Relative humidity less than 90%
    Operating Temperature -20°C to [$add]50°C (-14°F to 122°F)
    Storage Temperature -40°C to [$add]60°C (-40°F to 140°F)
    Model Number C1HH100FA-C
    Camera
    Image Sensor 1/3.02’’Color CMOS Image Sensor
    Max.Resolution 720P
    Min. Illumination 0.01Lux@(F1.6,AGC ON),0LUX with IR
    Electronic Shutter Auto
    Video Standard PAL/NTSC
    Synchronization Inter-Sync
    Lens
    Focal Length 3.6mm @F1.6
    Lens Resolution 3MP
    Illuminator
    Light Distance 15-20m
    IR LEDS 24pcs Infrared LEDs
    Day/Night Mode Auto/B&W
    Image Settings Contrast/sharpness/saturation/DNR
    Frame Rate 720P@25fps/30fps
    WDR Digital WDR
    UTC Support
    OSD Support Support
    Noise Reduction 3D DNR/2D DNR
    White Balance Auto/Manual
    Exposure Brightness/exposure mode/gain control
    Video Output AHD/TVI/CVI/CVBS Switch by UTC
    Language ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
    Audio
    Audio Input Support, built in mircophone
    Audio Output No
    Interface
    Video Output 1 x 4P Vehicle Aviation Connector
    General
    Type Metal Housing
    Power Supply 12V DC±10%
    Lightning Protection Support
    Power Consumption Max 3W
    Working Humidity Relative humidity less than 90%
    Operating Temperature -20°C to [$add]50°C (-14°F to 122°F)
    Storage Temperature -40°C to [$add]60°C (-40°F to 140°F)
    Model Number C1HH203F-C
    Camera
    Image Sensor 1/3.02’’Color CMOS Image Sensor
    Max.Resolution 2MP 1920(H)×1080(V)
    Min. Illumination 0.01Lux@(F1.6,AGC ON),0LUX with IR
    Electronic Shutter Auto
    Video Standard PAL/NTSC
    Synchronization Inter-Sync
    Lens
    Focal Length 3.6mm @F1.6
    Lens Resolution 3MP
    Illuminator
    Light Distance 15-20m
    IR LEDS 24pcs Infrared LEDs
    Day/Night Mode Auto/B&W
    Image Settings Contrast/sharpness/saturation/DNR
    Frame Rate 1920(H)×1080(V)@25fps/30fps
    WDR Digital WDR
    UTC Support
    OSD Support Support
    Noise Reduction 3D DNR/2D DNR
    White Balance Auto/Manual
    Exposure Brightness/exposure mode/gain control
    Video Output AHD/TVI/CVI/CVBS Switch by UTC
    Language ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
    Audio
    Audio Input No
    Audio Output No
    Interface
    Video Output 1 x 4P Vehicle Aviation Connector
    General
    Type Metal Housing
    Power Supply 12V DC±10%
    Lightning Protection Support
    Power Consumption Max 3W
    Working Humidity Relative humidity less than 90%
    Operating Temperature -20°C to [$add]50°C (-14°F to 122°F)
    Storage Temperature -40°C to [$add]60°C (-40°F to 140°F)
    Model Number C1HH203FA-C
    Camera
    Image Sensor 1/3.02’’Color CMOS Image Sensor
    Max.Resolution 2MP 1920(H)×1080(V)
    Min. Illumination 0.01Lux@(F1.6,AGC ON),0LUX with IR
    Electronic Shutter Auto
    Video Standard PAL/NTSC
    Synchronization Inter-Sync
    Lens
    Focal Length 3.6mm @F1.6
    Lens Resolution 3MP
    Illuminator
    Light Distance 15-20m
    IR LEDS 24pcs Infrared LEDs
    Day/Night Mode Auto/B&W
    Image Settings Contrast/sharpness/saturation/DNR
    Frame Rate 1920(H)×1080(V)@25fps/30fps
    WDR Digital WDR
    UTC Support
    OSD Support Support
    Noise Reduction 3D DNR/2D DNR
    White Balance Auto/Manual
    Exposure Brightness/exposure mode/gain control
    Video Output AHD/TVI/CVI/CVBS Switch by UTC
    Language ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
    Audio
    Audio Input Support, built in mircophone
    Audio Output No
    Interface
    Video Output 1 x 4P Vehicle Aviation Connector
    General
    Type Metal Housing
    Power Supply 12V DC±10%
    Lightning Protection Support
    Power Consumption Max 3W
    Working Humidity Relative humidity less than 90%
    Operating Temperature -20°C to [$add]50°C (-14°F to 122°F)
    Storage Temperature -40°C to [$add]60°C (-40°F to 140°F)
